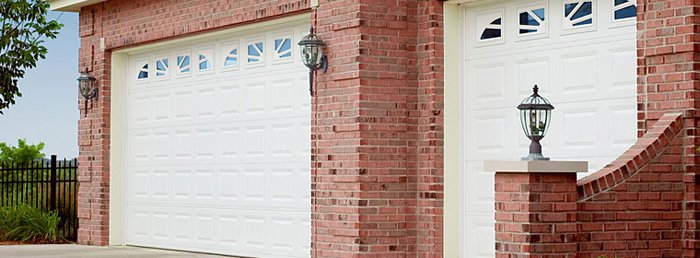

Steel Garage Door C.H.I. 2216 / 4216

Raised Panel/Flush Thermally-Broken Door

Mississauga, Oakville, Milton, Georgetown, Halton Hills, Brampton, Etobicoke and surrounding areas

This exceptional line of garage doors incorporates a thermally-broken section design for superior weather protection. A 26-gauge exterior steel skin and 27-gauge interior steel skin filled with foamed-in-place urethane creates an extremely rigid barrier. A continuous section joint seal that impedes air infiltration additionally enhances this door. Available in six designer colors and a diverse collection of window options, this door will add value and appeal to your home for years to come.

Technical Data

• 2" thick door sections are formed from 26-gauge exterior and 27-gauge interior galvanized draw quality steel
• High-density CFC free polyurethane injected core
• Long-lasting durable rollers assure consistent, efficient operation
• Heavy-duty 14-gauge hinges with "wide body" pattern for greater stability and longer life
• Extra-heavy paint system includes .25 mil. primer with rust inhibitor and a .75 coating of baked-on polyester paint in white, almond, sandstone, brown, bronze, or evergreen
• Concealed steel plates run continuously from top to bottom of each section for fastening hardware
• Optional white, powder-coated hardware
  White painted end stiles
• Thermally-broken for optimum weather protection
• Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
• A continuous weather seal at the section joint assures maximum protection from the elements

DOOR INSULATION

These Models utilize 26-gauge exterior and 27-gauge interior steel skins injected with CFC free urethane insulation. The thermally-broken tongue and groove section joint includes a continuous weather seal offering exceptional protection from the elements.

2216 R-value* - 17.19
4216 R-value* - 17.19
2217 R-value* - 17.54

Panel Comparison
